Hello, Welcome to visit Jiangsu WeiXiangRui Intelligent Equipment Technology Co.,Ltd!

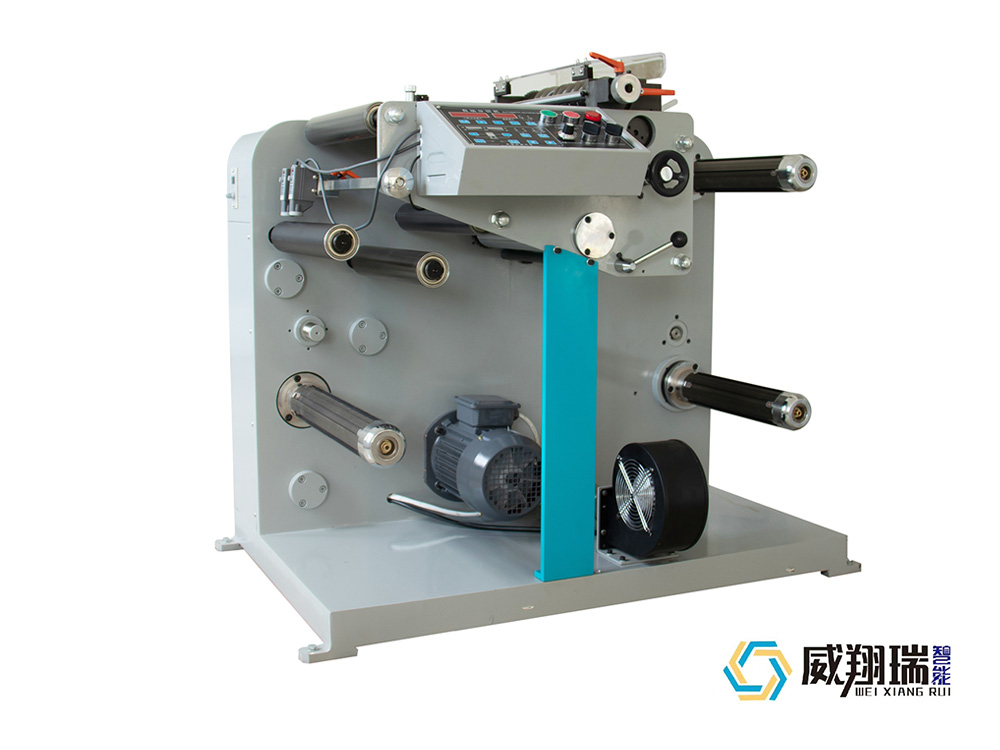

WXR-320/420-Automatic Slitting machine

Compared with the round cutter die-cutting machine faster, more efficient, simple operation, smooth operation;
With automatic meter counting, automatic stop, photoelectric eye deviation correction and other functions;
It is a four-axis coil changing and cutting machine with cutting function.
With high precision round cutter die-cutting system;
Used for blank sticker, die - cutting, cutting can be completed at one time.

Contact：+86-17372606095

consulting Message

Product details

main parameter：

Model	WXR-320	WXR-420
Maximum feed width	350mm	420mm
Max.rewinding diameter	500mm	500mm
Max.winding diametcr	480mm	500mm
Cutting and precision	士0.10mm	士0.10mm
Cutting speed	120/140/180m/min	120m/min
Narrowwst slitting	8mm	8mm
Positioningaccuracy	330mm	410mm
The motor power	220v	220v
The power supply	1500W/3KW	1500W/3KW
Machine dimension	11008001280mm	12009001200mm
Machine weight	About 400kg	About 500kg

main features：

◎Compared with the round cutter die-cutting machine faster, more efficient, simple operation, smooth operation;

◎With automatic meter counting, automatic stop, photoelectric eye deviation correction and other functions;

◎ It is a four-axis coil changing and cutting machine with cutting function. With high precision round cutter die-cutting system;

◎ Used for blank sticker, die - cutting, cutting can be completed at one time.

Scope of application：◎Suitable for cutting protective film, PET, insulating material, mylar, industrial tape, adhesive products and various electronic material
