Main features:

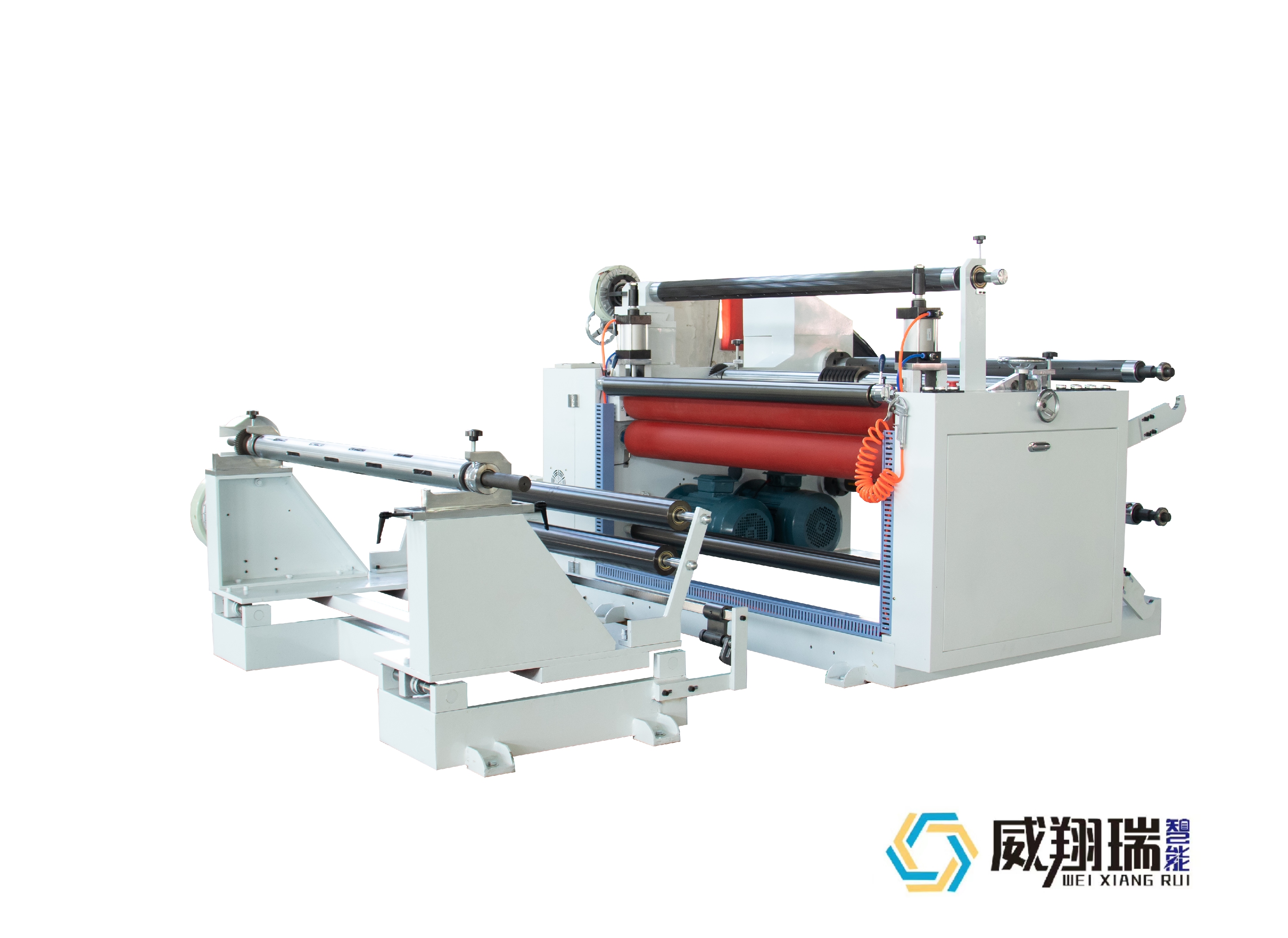

◎This machine is a kind of splicing and cutting machine equipment with high precision and sensitivity.
◎Charging and discharging are carried out by air expansion shaft, tension is controlled by magnetic powder clutch, automatic deviation correction, automatic meter counting;
◎Accurate cutting, cutting speed, easy operation and maintenance, etc.
Main parameter:
Model | WXR-1300 | WXR-1600 |
Maximum feeding width | 1300mm | 1600mm |
Fecding diameter | 800mm | 800mm |
winding diameter | 450mm | 450mm |
Cutting and precision | 土0.10mm | 土0.10mm |
Cutting speed | 100m/min | 100m/min |
The power supply | 380v 50Hz | 380v 50Hz |
The motor power | 8500w | 8500w |
Machine dimension | 3200*2000*1300mm | 3200*2300*1300mm |
Weight | About 2700kg | About 2900kg |
Scope of application:
◎Suitable for laminating and cutting industrial tape, cellophane tape, protective film, copper foil, aluminum foil, OPP, PP, PE, PVC, paper, cloth and other strip processing.This machine is widely used in printing, packaging, electronics, leather, clothing, plastic and other industries.
