Main features:
Model | WXR-320 | WXR-420 |
Cutting speed | 120m/min | 120m/min |
Cutting precision | 士0.10mm | 士0.10mm |
Maximum width of paper | 320mm | 420mm |
Maximum unwinding diameter | 550mm | 550mm |
Maximum winding diameter | 550mm | 550mm |
lnput Voltage | 220/380V | 220/380V |
Motor Power | 3000w | 3000w |
Machine dimension | 1700*1000*1600mm | 1700*1100*1600mm |
Machine weight | About 600kg | About700kg |
Main features:

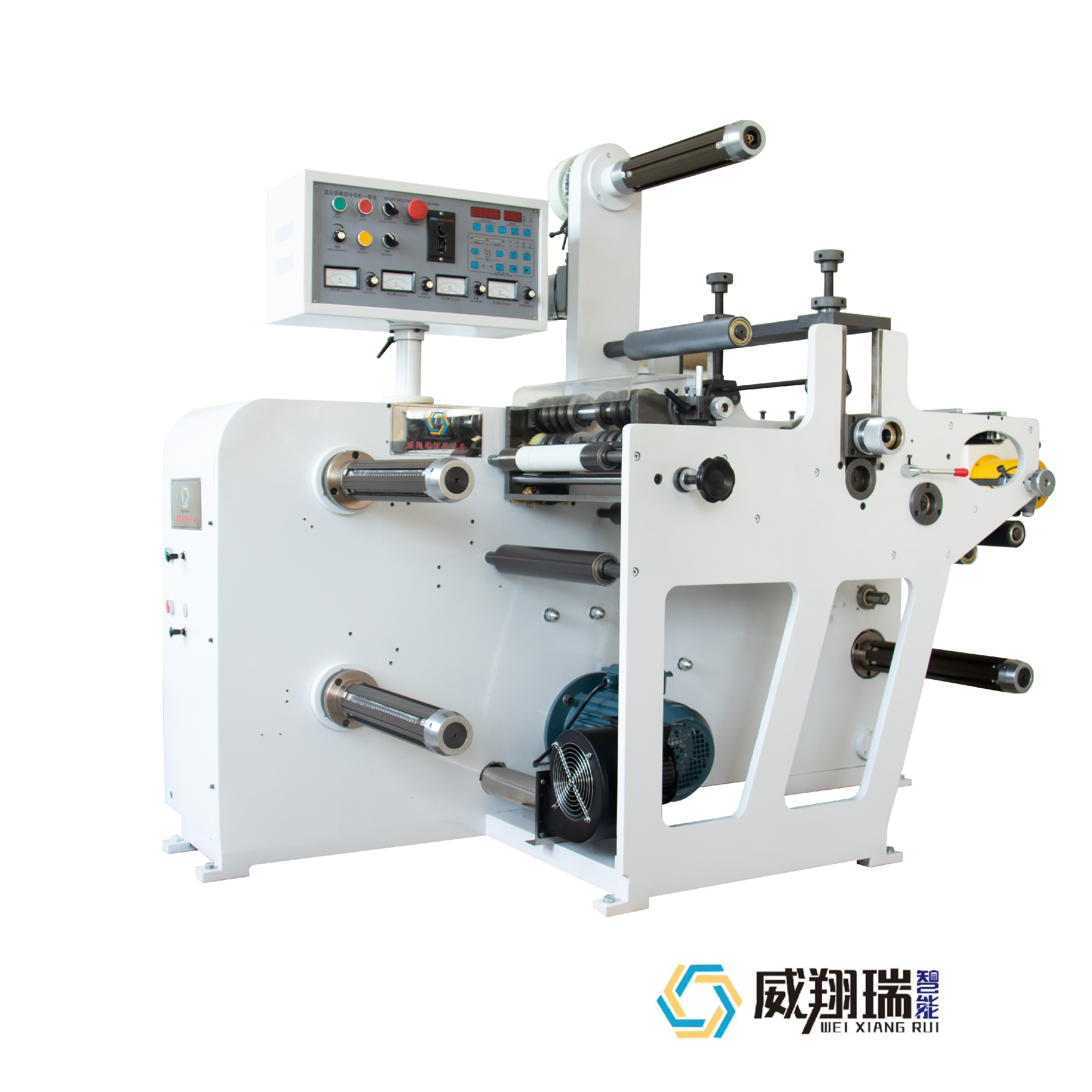

The machine has compact structure, fast speed, high efficiency, simple operation and smooth operation.
With automatic meter counting, automatic stop, photoelectric eye deviation correction and other functions;
Is a new round cutter die-cutting machine with cutting function; With high precision round cutter die-cutting system;
This machine is suitable for blank sticker, die - cutting, cutting can be completed at one time
Scope of application:
◎Cloth, PU leather, PVC, Bovine Margo, flocking leather, Campella, Gangbao, etc., suitable for shoes, clothing, handbags, toys and other industries.
