Main features：

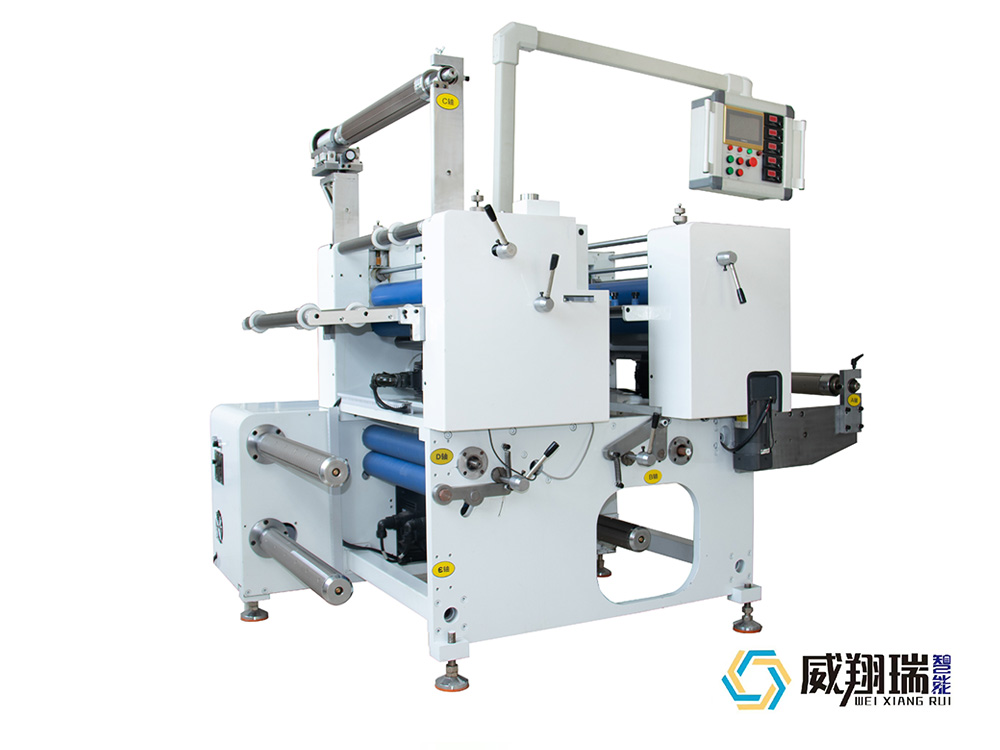

This machine adopts programmable controller + man-machine touch screen + double servo control to pull material, which has the characteristics of high pulling precision, fast response speed, good synchronization effect, simple operation and so on.
The machine can do clearance cutting, and can complete several clearance type half break a full break, asynchronous rewinding or asynchronous slicing, sheet material asynchronous or asynchronous rewinding, can be equipped with a knife die for die cutting work, feeding shaft can be manually rectifying deviation, convenient and fast.
Technical parameter：
| Model | WXR-600 | WXR-800 | WXR-1000 |
| cutting speed | 150T/min | 150T/min | 150T/min |
| Accuracy of positioning | 士0.05mm | 士0.05mm | 士0.05mm |
| cutting width | l-600mm | 1-800mm | 1-1000mm |
| Cutting length | 0.1-9999.9mm | 0.1-9999.9mm | 0.1-9999.9mm |
| The Input voltage | 380v | 380v | 380v |
| The motor power | 3000w | 3000w | 3000w |
| Mechanical dimensions | 2200*800*1700mm | 2200"1000*1700mm | 2200*1200*1700mm |
| The weight | About 800kg | About 1000kg | About 1200kg |
Scope of application：
◎Conductive cloth, conductive double-sided adhesive tape, foam cotton, diffusion sheet, reflective film, double-sided adhesive tape, PET, PC, PE insulating paper, copper/aluminum foil clearance cutting.
